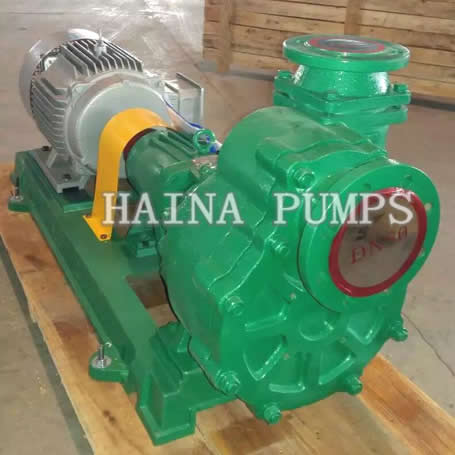

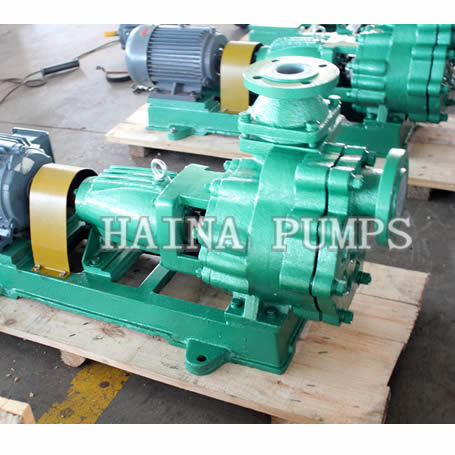

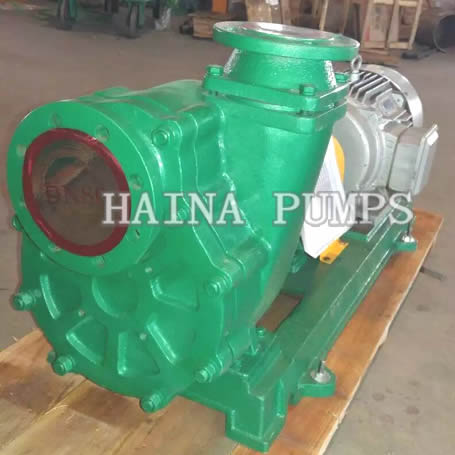

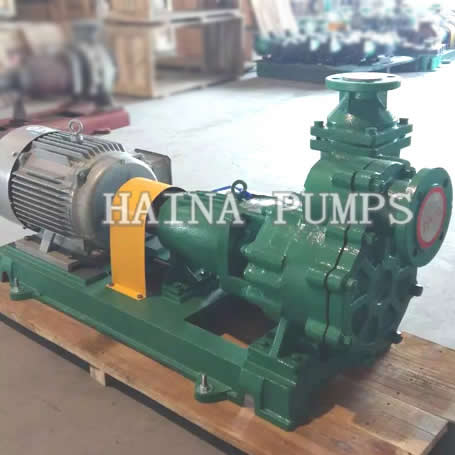

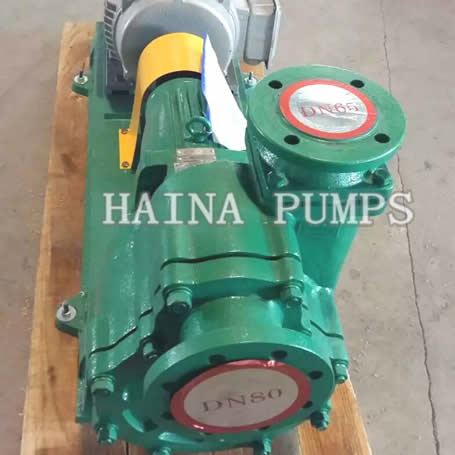

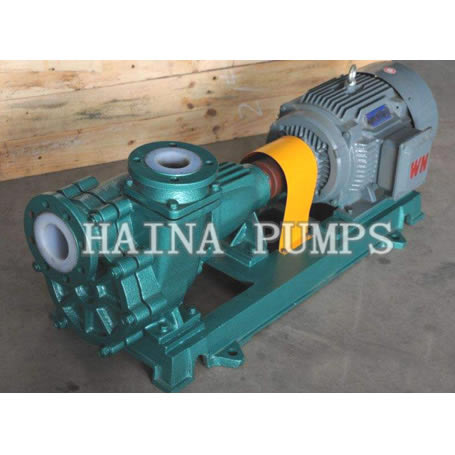

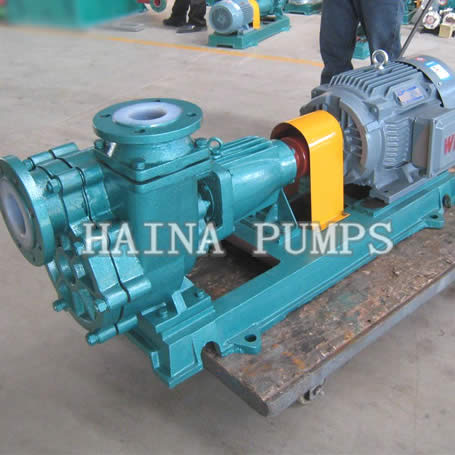

FZB series of fluorine plastic self-priming pump is according to the international standard and combined with non-metallic pump design and manufacturing process.Use a metal shell lining fluoride plastic pump body, flow components are all made of fluoroplastic alloy, pump cover, impeller, etc are made of metal insert Package fluorine plastic overall sintering suppression and become, shaft seal mounted outside using advanced bellows mechanical seal, static ring choose 99.9% alumina ceramic (or silicon nitride), ring with four fluorine filling materials, its excellent corrosion resistant seal.inlet and outlet of haina brand pump adopts cast steel reinforcement, in order to enhance the pump pressure resistance.The practical use shows that the pump has corrosion resistance, abrasion resistance, high temperature resistant, not aging, high mechanical strength, smooth operation, advanced structure reasonable, sealing Can be reliable, convenient disassembly maintenance, long service life, etc.
Outside the pump is currently the most advanced mounted ptfe bellows mechanical seal, with multiple protection, prolong the service life of the machine to seal, for conveying medium with impurity particles, but with no cooling water single face hard in hard (to silicon carbide, silicon carbide) mechanical seal, so users need to consider the model selection of the solid content in the medium.

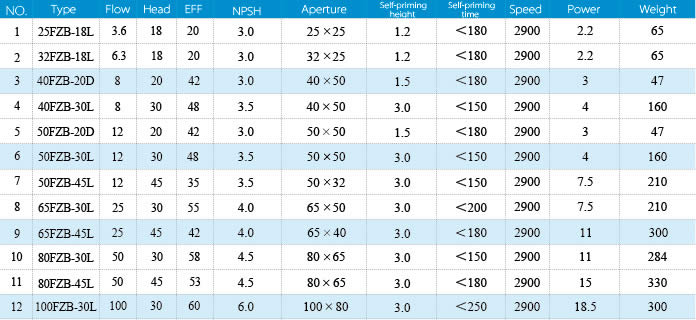

FZB series of fluorine plastic self-priming pump data table
